工商业储能电池

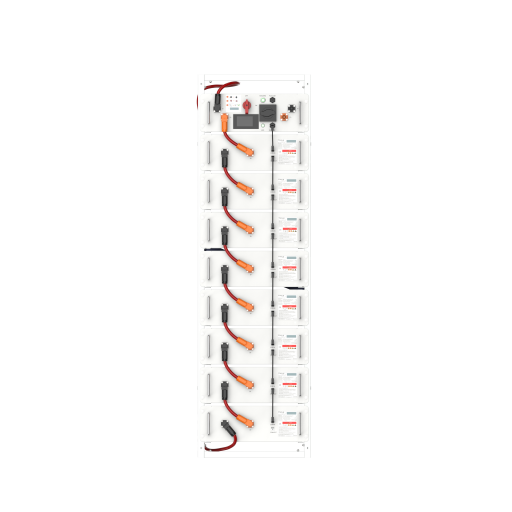

TSYS-HR76
-
7.68 千瓦时 | 磷酸铁锂电池 150 Ah
产品优势
TSYS-HR76 专为灵活适配与可靠运行而设计，工作温度范围覆盖充电0°C至55°C、放电-20°C至55°C。可扩展架构支持每组5至14个模块灵活配置，额定电压范围256.0V至716.8V，额定容量覆盖38.4kWh-215kWh，确保在多样化的工商业储能应用中始终保持卓越性能。
高效运行
持续保持1C性能输出
嵌入式安装设计，快速部署
模块化架构，维护便捷高效
智能管理
充放电自动管理
多重安全防护：过充、过放、极端温度保护
稳定可靠
高安全磷酸铁锂电池
超长循环寿命，持久稳定运行
灵活配置
电池组可扩展（每组5-14个模块）
支持远程固件升级
全面兼容艾罗逆变器
Product Parameters
-
T-HR38.4 / T-HR38.4P-
SYSTEM SPECIFICATION
Module quantities 5 Nominal energy 38.4 kWh Nominal voltage 256.0 V Max. charge / discharge current 150 A Rated power 23.0 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR46.0 / T-HR46.0P
-
SYSTEM SPECIFICATION
Module quantities 6 Nominal energy 46.0 kWh Nominal voltage 307.2 V Max. charge / discharge current 150 A Rated power 27.6 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR53.7 / T-HR53.7P
-
SYSTEM SPECIFICATION
Module quantities 7 Nominal energy 53.7 kWh Nominal voltage 358.4 V Max. charge / discharge current 150 A Rated power 32.2 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR61.4 / T-HR61.4P
-
SYSTEM SPECIFICATION
Module quantities 8 Nominal energy 61.4 kWh Nominal voltage 409.6 V Max. charge / discharge current 150 A Rated power 36.8 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR69.2 / T-HR69.2P
-
SYSTEM SPECIFICATION
Module quantities 9 Nominal energy 69.1 kWh Nominal voltage 460.8 V Max. charge / discharge current 150 A Rated power 41.4 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR76.8 / T-HR76.8P
-
SYSTEM SPECIFICATION
Module quantities 10 Nominal energy 76.8 kWh Nominal voltage 512.0 V Max. charge / discharge current 150 A Rated power 46.0 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR84.4 / T-HR84.4P
-
SYSTEM SPECIFICATION
Module quantities 11 Nominal energy 84.4 kWh Nominal voltage 563.2 V Max. charge / discharge current 150 A Rated power 50.6 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR92.1 / T-HR92.1P
-
SYSTEM SPECIFICATION
Module quantities 12 Nominal energy 92.1 kWh Nominal voltage 614.4 V Max. charge / discharge current 150 A Rated power 55.2 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR99.8 / T-HR99.8P
-
SYSTEM SPECIFICATION
Module quantities 13 Nominal energy 99.8 kWh Nominal voltage 665.6 V Max. charge / discharge current 150 A Rated power 59.8 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR107.5 / T-HR107.5P
-
SYSTEM SPECIFICATION
Module quantities 14 Nominal energy 107.5 kWh Nominal voltage 716.8 V Max. charge / discharge current 150 A Rated power 64.5 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 170 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
